External Battery Cabinet For 10 KVA To 320 KVA 3 Phase Systems

Regular price
$ 19,730.00
Sale price
$ 19,730.00
Regular price
Sold out
Unit price
per

The external battery cabinet can be added to any of the UPS models listed below. It greatly extends the battery backup time to the UPS it is attached to. Multiple EBC (external battery cabinets) can be daisy chained together.

Each EBC (external battery cabinet) typically adds 1 hour and 28 minutes to a continuous 10,000 watt load. For assistance with your specific backup time requirements, please contact us by chat (bottom right corner), email (engineering@batterybackuppower.com), or by phone (855-330-7799).



Compatible With The Following Battery Backup UPS Models:



Specifications:

-Model Number: BBP-3P-EBC-29B-12VDC-100AH

-Physical Dimensions: 43.5” X 63” X 39.5” Inches (W X H X D)

-Physical Weight: 2,888 lbs.

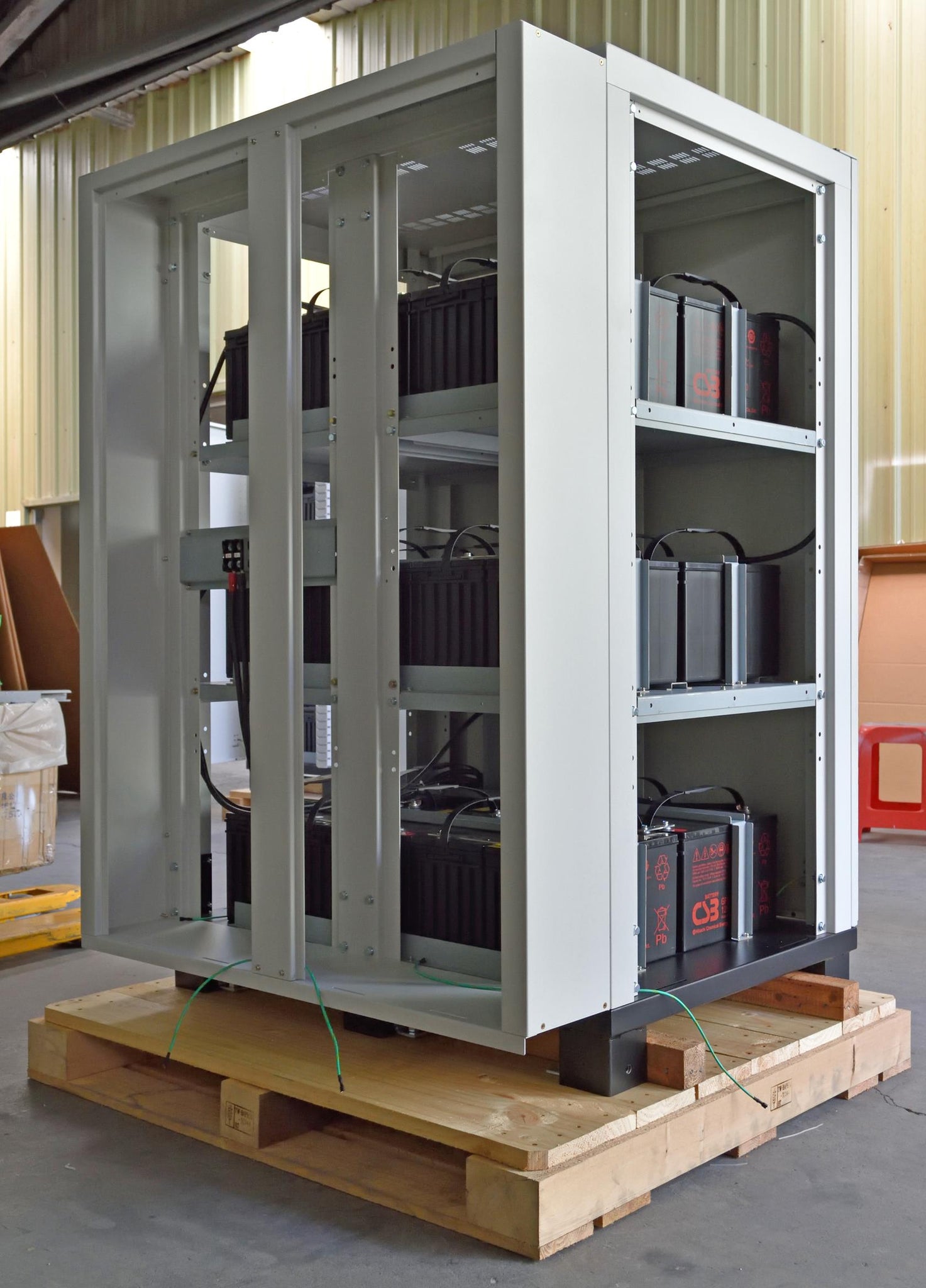

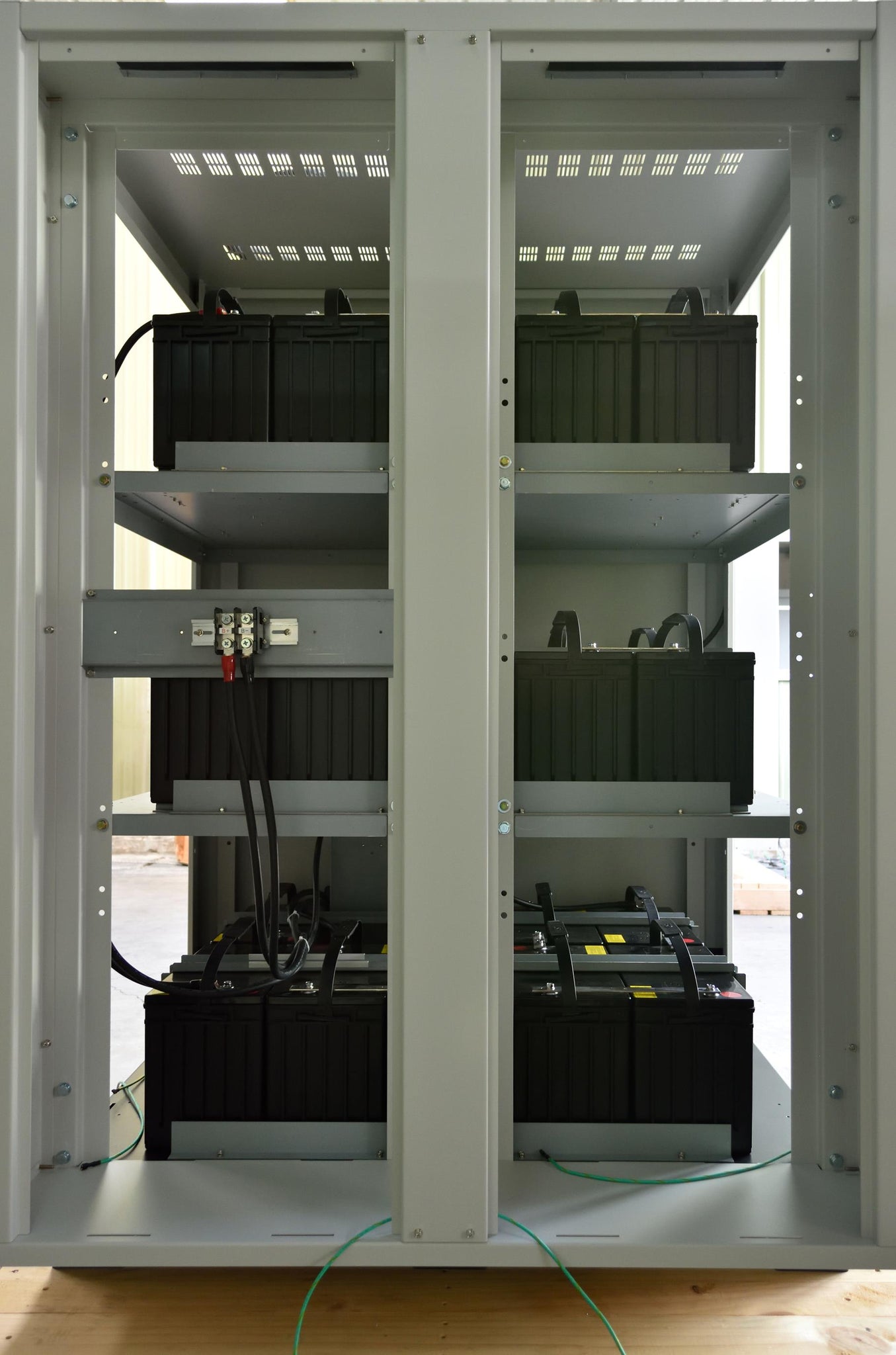

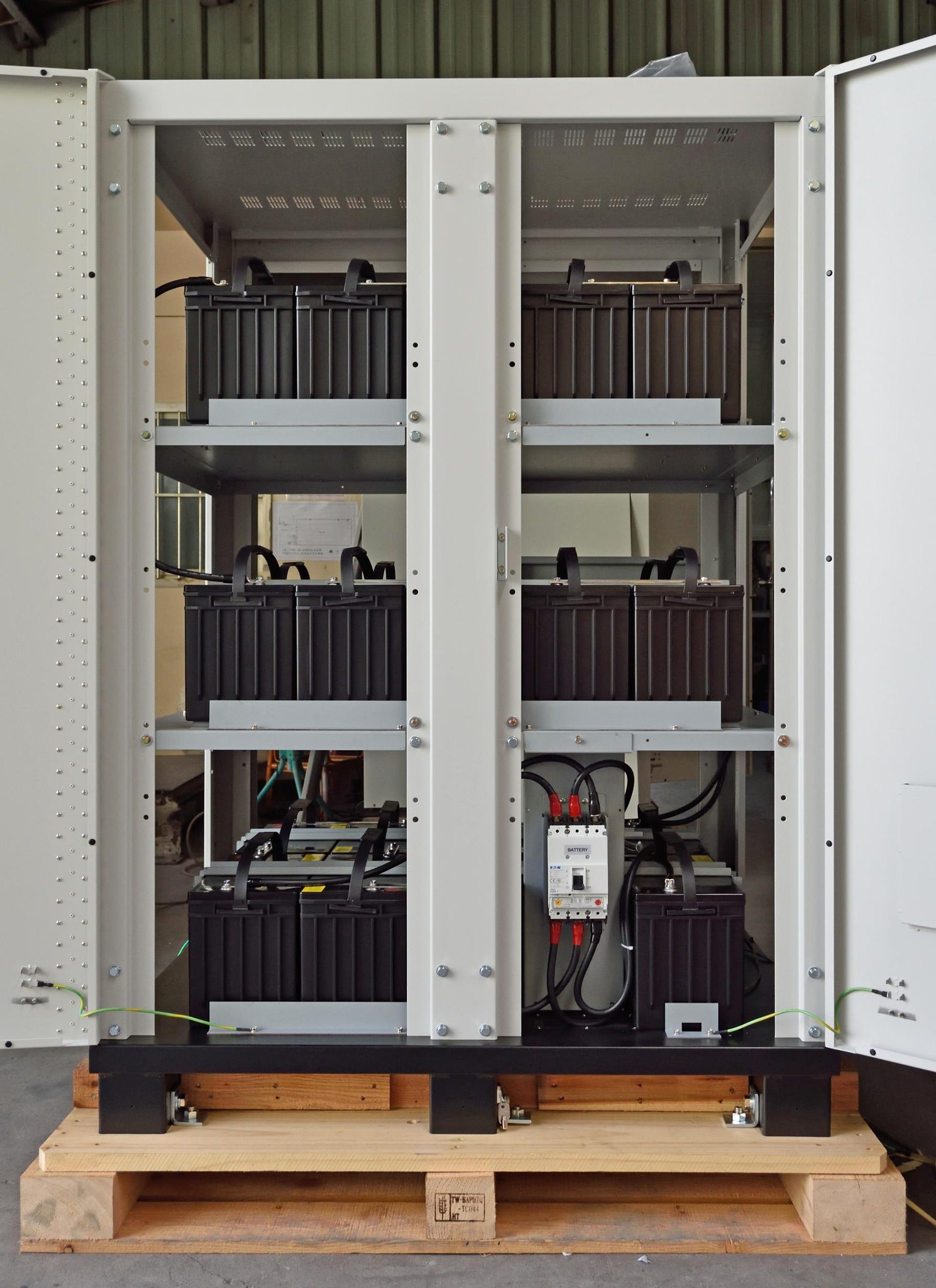

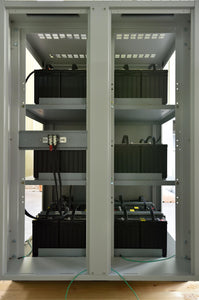

-Battery Configuration: 29x 12 Volt 100 Amp Hour Batteries

-348 Volt DC Bus

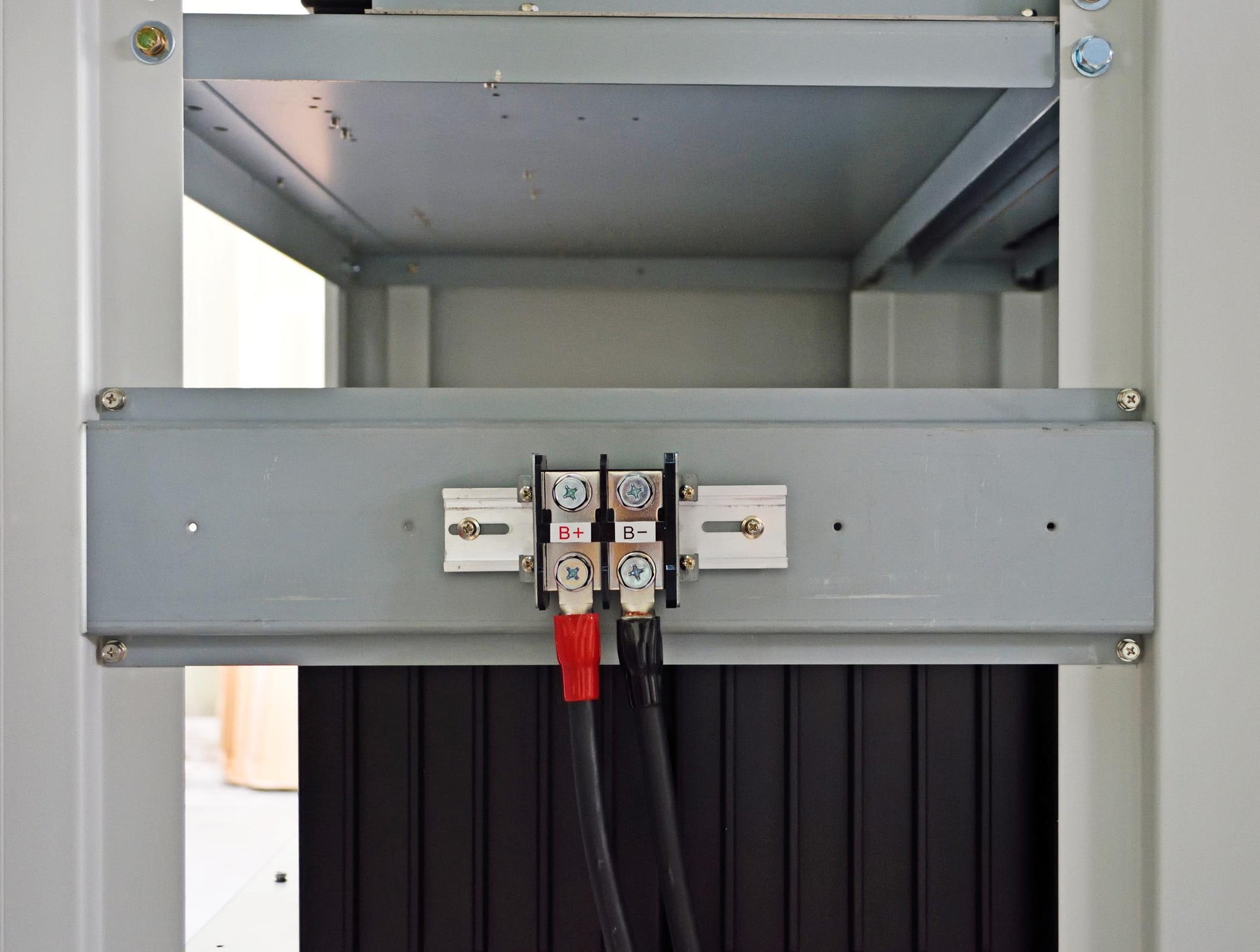

-Connection: Negative And Positive DC Connection Cables To UPS Or Previous External Battery Cabinet
