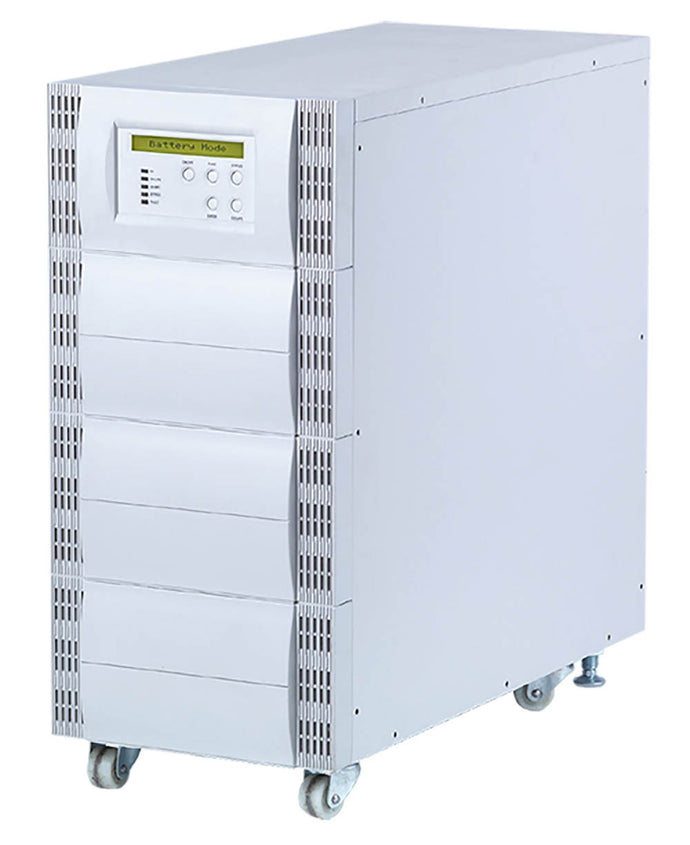

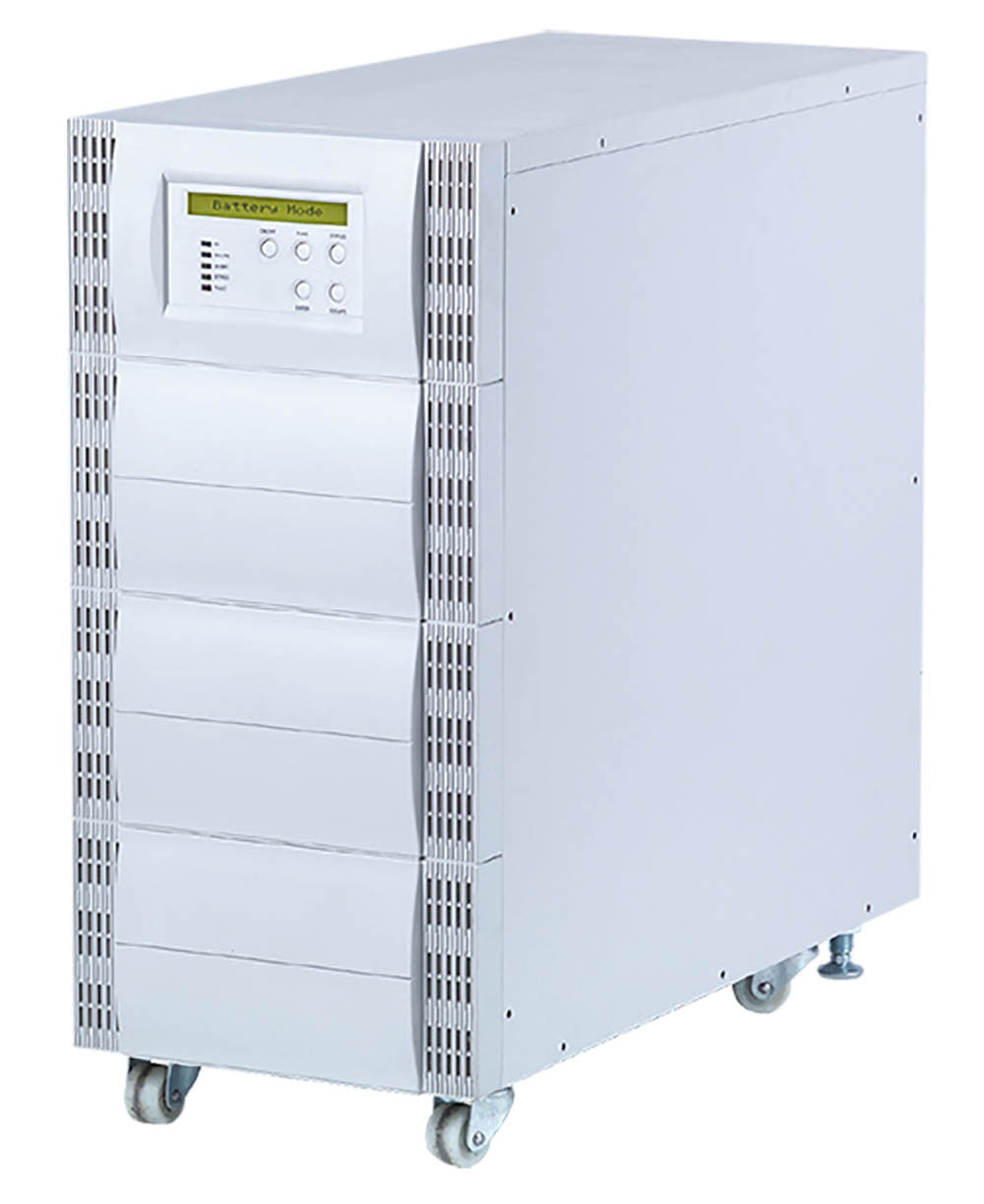

Battery Backup Uninterruptible Power Supply (UPS) And Power Conditioner For Agilent 1100 Series Liquid Chromatograph

$ 4,999.99

The 6,000 VA (6 kVA) / 4,200 Watt (4.2 kW) online pure sine wave battery backup laboratory power protection system (LPS/LPPS) / uninterruptible power supply (UPS) and 5 tier active power conditioner with surge protector automatically provides defense against power problems that may impact the Agilent 1100 Series Liquid Chromatograph. Give your laboratory instruments longer life and better results while protecting them from harmful dirty power problems that may otherwise damage or degrade their performance. Much more than a battery in a box, every Battery Backup Power, Inc. system doubles as a power conditioner, actively correcting voltage issues left unresolved by the power company or created by other power hungry electronics in your laboratory (laser printers, HVAC systems, refrigeration equipment, etc.).

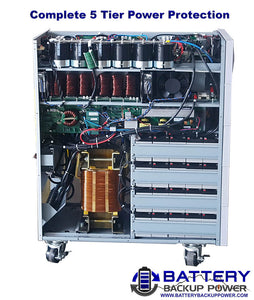

Complete 5 Tier Power Protection System – Surge Protection, Real Time Power Conditioning With Voltage Regulation, Heavy Duty Isolation Transformer, Pure Sine Wave Output, & Always On Double Conversion Backup Power Technology.

Do you need a PDF quote or a custom emergency backup solution? Email us at engineering@batterybackuppower.com

  • 6,000 VA (6 kVA) / 4,200 Watt (4.2 kW) Maximum Capacity
  • 208-240 Volt Single Phase Input / 120 Volt Or 240 Volt Single Phase Output
  • Built In Isolation Transformer To Suppress Electrical Noise For Sensitive Devices As Well As Protect Users From Faulty Equipment
  • Tower

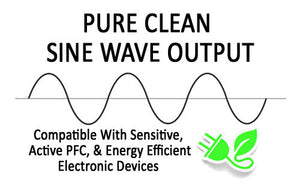

  • Pure Sine Wave Clean Output To Operate And Maximize The Life Of Even The Most Sensitive Electronics
  • Online (Double Conversion) - Highest Level Of Protection Available - Battery Power Always Engaged, No Switching Delay

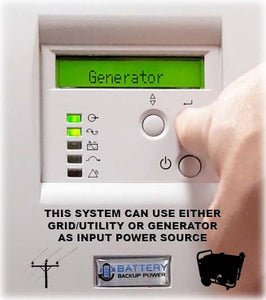

  • Accepts Generator Power (Direct or On Automatic Transfer Switch)
  • Constant Voltage Regulation
  • Constant Frequency Regulation
  • Factory Warranty: 3 Years On Electronics And 1 Year Warranty On Batteries
  • Optional Extended Warranty: 5 Years On Electronics And 2 Year Warranty On Batteries
  • Heavy Duty Industrial Grade For Constant Use
  • For Use With Laboratory Instruments
  • For Use With Sensitive IT Equipment
  • 0.7 Power Factor

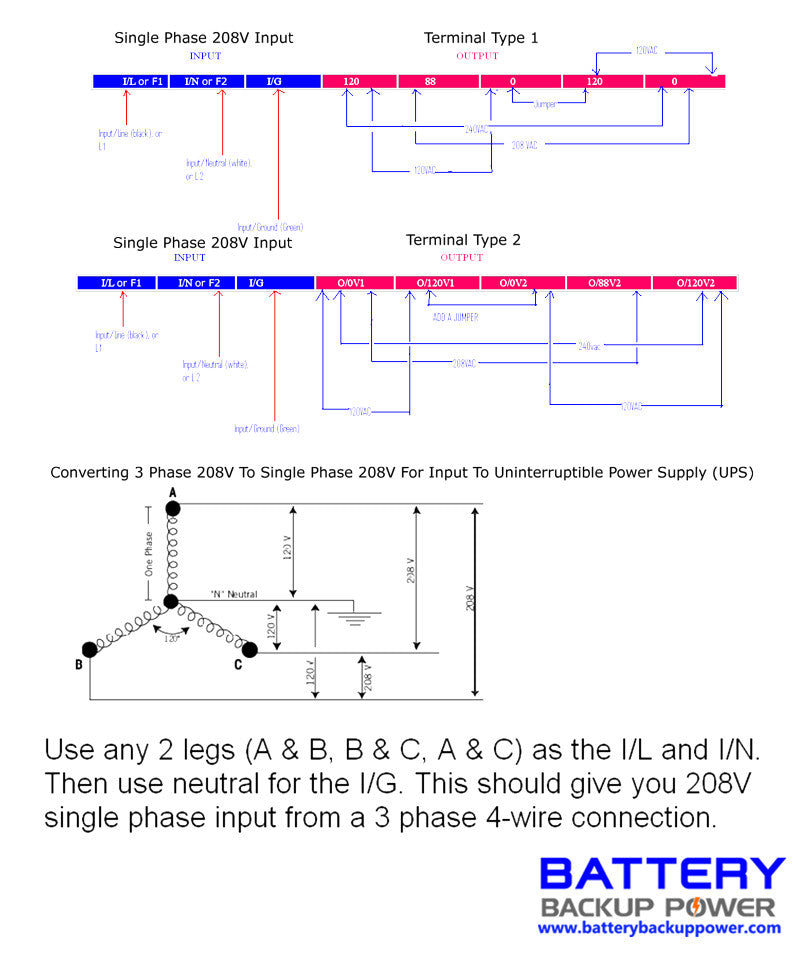

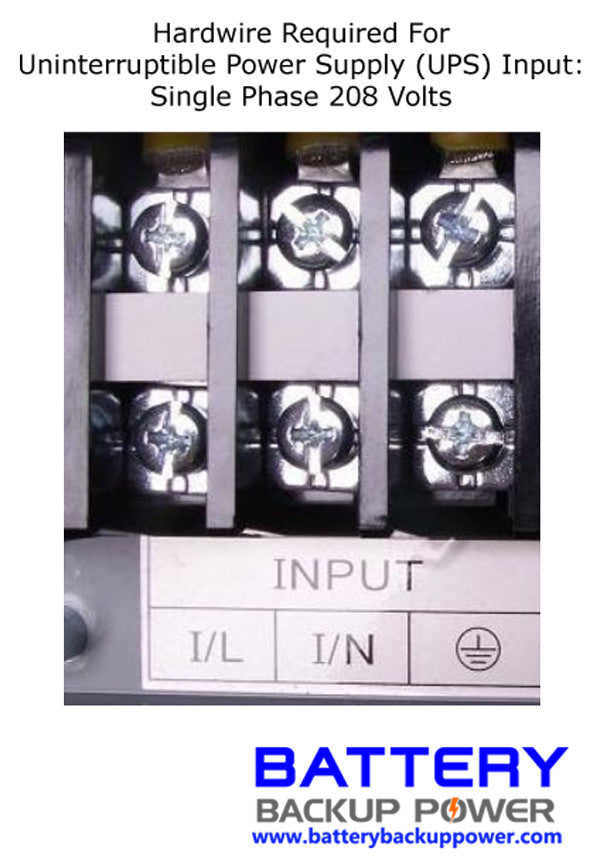

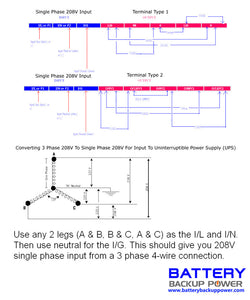

  • INPUT: Hardwire (No Outlets) 208-240 Volt Single Phase, 30 Amps

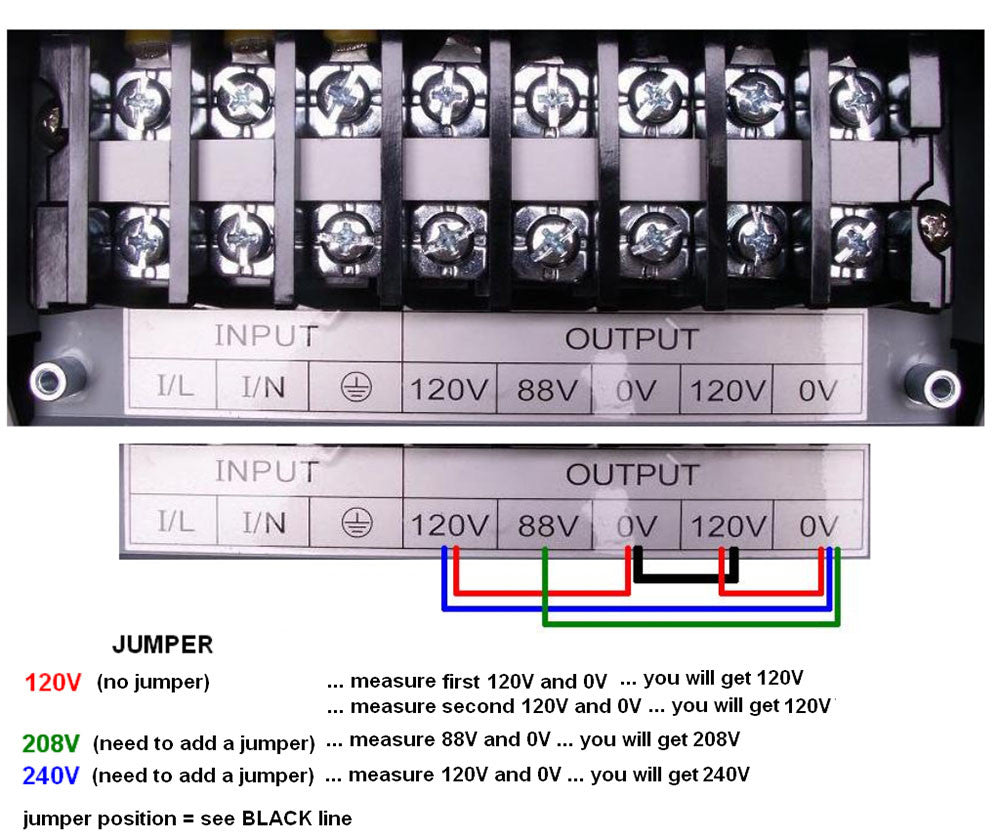

  • OUTPUT: Hardwire (No Outlets) 120 Volt Or 240 Volt
  • Typically Installed On A Branch Circuit By An Electrician
  • Estimated Run Time/Backup Power Time On Battery Power:
    • 18 Minutes 20 Seconds UPS Only
      • 20x 12 Volt 7.2 Amp Hour Batteries

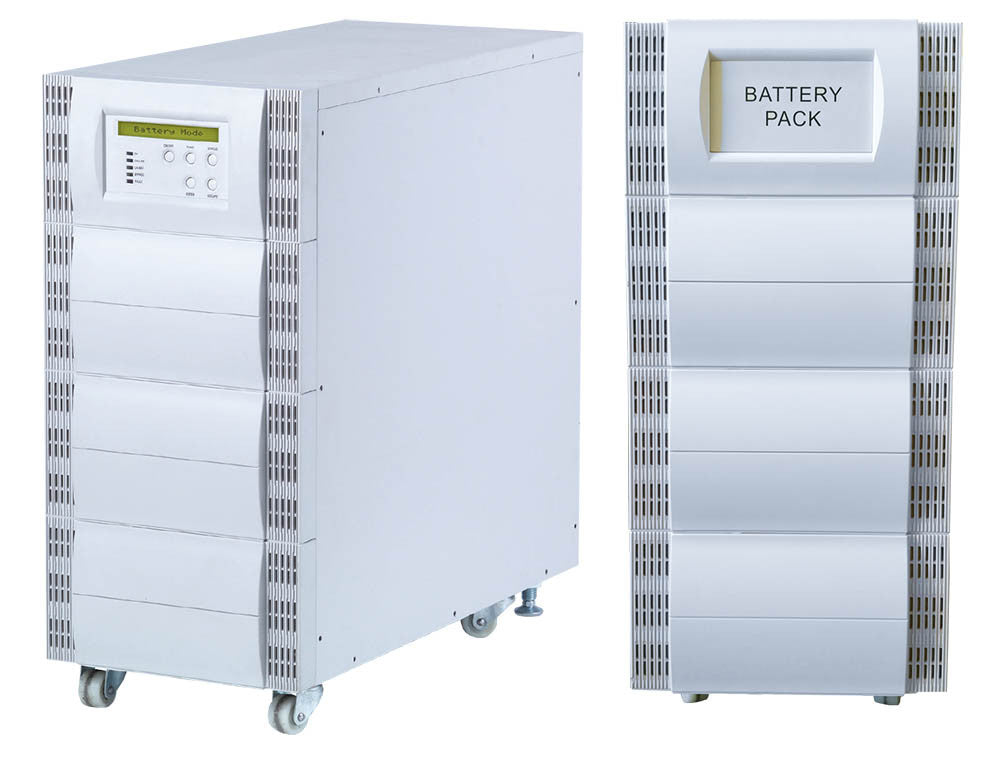

    • 36 Minutes 41 Seconds UPS + 1 Battery Cabinet
      • 40x 12 Volt 7.2 Amp Hour Batteries

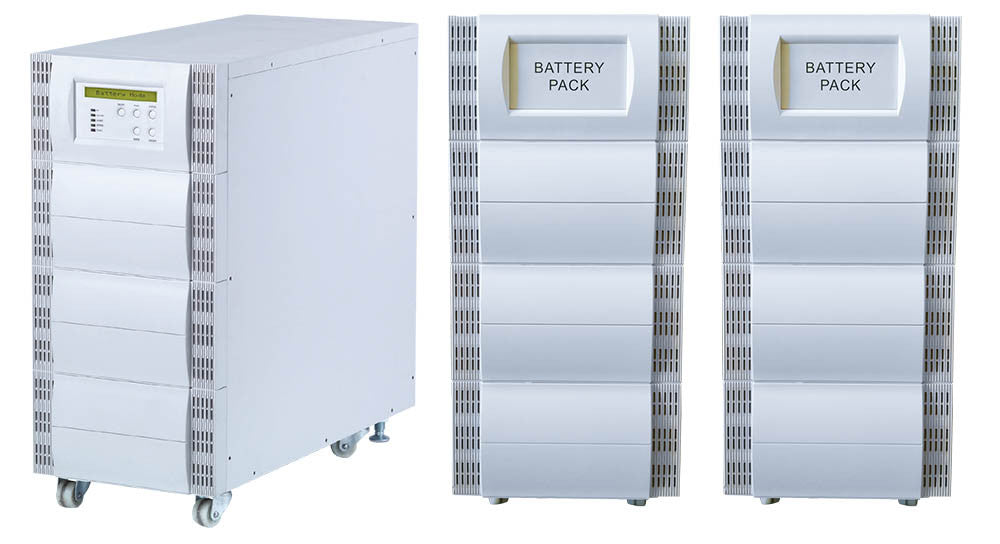

    • 55 Minutes 01 Seconds UPS + 2 Battery Cabinets
      • 60x 12 Volt 7.2 Amp Hour Batteries
  • Run Time/Backup Power Time Includes The Following Equipment
    • G1310/11A Iso/Quat Pump
    • G1312A Binary Pump
    • G1322A Degasser
    • G1313A Autosampler
    • G1330A Sample Thermostat
    • G1329A Autosampler
    • G1316A Therm Column Comp
    • G1314/5A VWD & DAD
    • G1365A MWD
    • G1321A FLD
    • G1362A RID
    • Laboratory Computer/Data System With Monitor
    • BBP-6000-PSW-ONL-AGILENT-1100LC
    • Configurable Output 120V or 240V (Not Simultaneous)

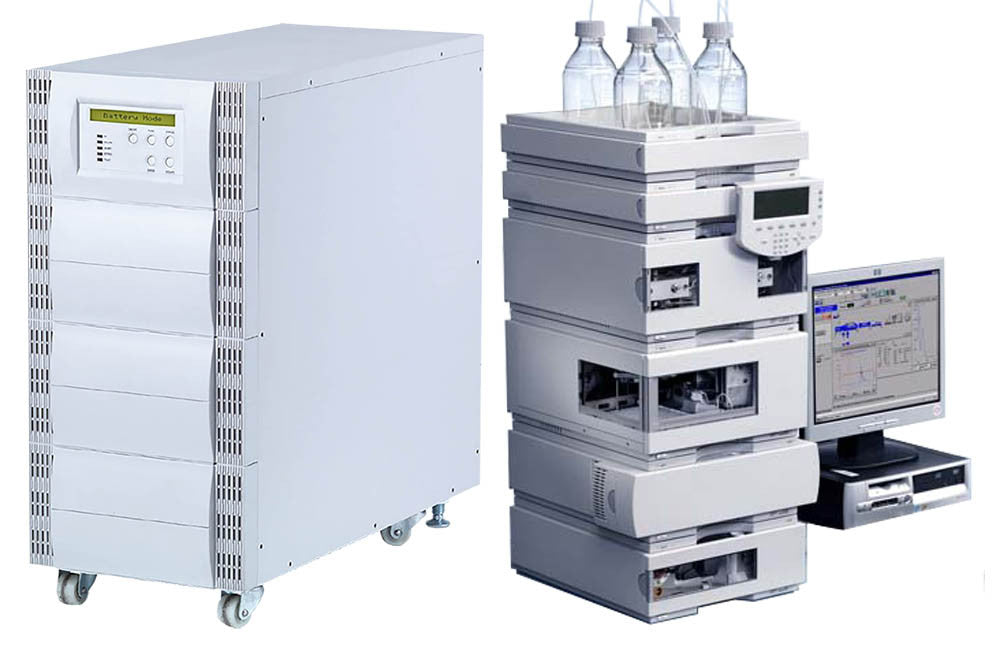

    • For Use With Agilent 1100 Series Liquid Chromatograph
    • Weight: 320 lbs.
    • Dimensions (Inches): 16.3 x 29.9 x 36.6 (W x D x H)
    • Operating Temperature: 32°-104° F
    • Operating Humidity: 0 - 95%, Non-Condensing
    • Operating Elevation: 11,482 Feet Maximum
    • Cold Start Capable (Shipped With Cold Start Disabled, Will Enable Automatically After Receiving Power For The First Time After Shipping)
    • Includes UPSMON Plus For Windows Monitoring & Configuration Software: Download Here
    • Add A Power Failure Cellular Text/SMS Alert Module
    • Free Shipping/Freight Within The United States Or To U.S. Based Freight Forwarder Specified Location (List U.S. Based Location Specified By Forwarder In Shipping Address For International Orders)

    User Guide:
    https://cdn.shopify.com/s/files/1/0690/5525/files/BBP-6000-PSW-ONL_User_Guide.pdf?6489480182054981154

    Replacement Batteries:
    -Type: 12 Volt 7.2 Amp Hour Batteries
    -Make & Model Number: Yuasa NPW36-12 12V 7.2Ah or Equivalent
    -Lowest Cost: $24.99 Each Plus Shipping On Amazon
    http://www.amazon.com/Yuasa-NPW36-12-7-2Ah-Replacement-Battery/dp/B00C811ZOY/


    Watch The Video Above To See How Easy It Is To Add Extra Backup Time

    How The University of Nevada, Reno Keeps Its Lab Running When The Power Fails

    How The University of Nevada, Reno Keeps Its Lab Running When The Power Fails

    The Uninterruptible Power Supply (UPS) Inverter Capacity XXXX VA / XXXX Watts Determines How Many Watts Can Be Used From The UPS (How Large Of An Electrical Load). This Stays Constant Even If Extra Batteries Are Added. For Example, A 600 Watt UPS Can Run 10x 60 Watt Light Bulbs.

    Extra Batteries Or External Battery Packs/Cabinets Increase Run Time (The Time Electronics Can Be Run On Battery Power). Extra Batteries Do Not Increase The Inverter Capacity (How Many Watts Can Be Used From The UPS). For Example, A 600 Watt UPS Can Still Only Run 10x 60 Watt Light Bulbs, But With Extra Batteries, It Can Run Those Light Bulbs Much Longer.

    Get an estimation of how long your electronics will run on backup battery power with this unit during a power outage. Write down the Power Factor, Number of Batteries, Voltage of Batteries, and Amp Hour Rating from above, then click here to go to our uninterruptible power supply (UPS) backup run time calculator
