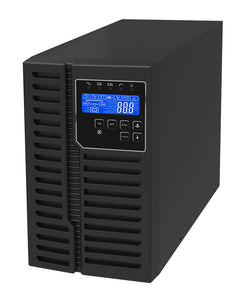

1 kVA / 900 Watt Power Conditioner (230 VAC), Voltage Regulator, & Battery Backup UPS Front

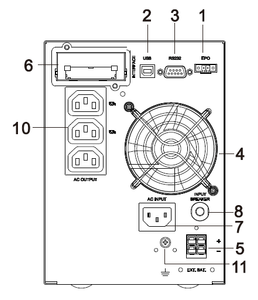

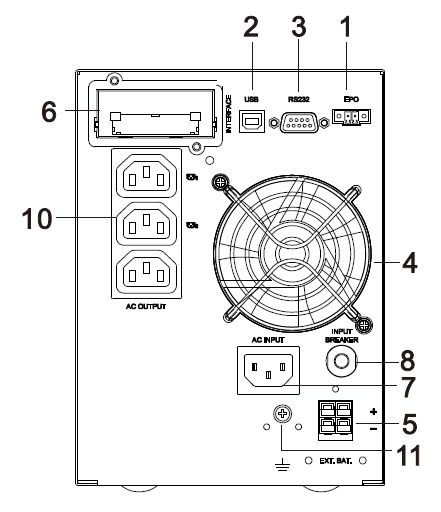

1 kVA / 900 Watt Power Conditioner (230 VAC), Voltage Regulator, & Battery Backup UPS Back

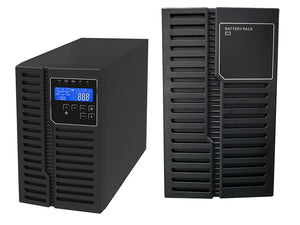

1 kVA / 900 Watt DSP Tower UPS (Uninterruptible Power Supply) And Power Conditioner For Sensitive Electronics With External Battery Pack
1 kVA / 900 Watt DSP Tower UPS (Uninterruptible Power Supply) And Power Conditioner For Sensitive Electronics With 2 External Battery Packs
1 kVA / 900 Watt DSP Tower UPS (Uninterruptible Power Supply) And Power Conditioner For Sensitive Electronics With 3 External Battery Packs
1 kVA / 900 Watt DSP Tower UPS (Uninterruptible Power Supply) And Power Conditioner For Sensitive Electronics With 4 External Battery Packs
1 kVA / 900 Watt DSP Tower UPS (Uninterruptible Power Supply) And Power Conditioner For Sensitive Electronics With 5 External Battery Packs
Power Synchronization Technology Double Conversion Battery Backup UPS No Transfer Delay To Backup Power
Pure True Clean Sine Wave Output Battery Backup UPS
DSP (Digital Signal Processing) Battery Backup UPS
  • Load image into Gallery viewer, 1 kVA / 900 Watt Power Conditioner (230 VAC), Voltage Regulator, & Battery Backup UPS Front
  • Load image into Gallery viewer, 1 kVA / 900 Watt Power Conditioner (230 VAC), Voltage Regulator, & Battery Backup UPS Back
  • Load image into Gallery viewer, 1 kVA / 900 Watt DSP Tower UPS (Uninterruptible Power Supply) And Power Conditioner For Sensitive Electronics With External Battery Pack
  • Load image into Gallery viewer, 1 kVA / 900 Watt DSP Tower UPS (Uninterruptible Power Supply) And Power Conditioner For Sensitive Electronics With 2 External Battery Packs
  • Load image into Gallery viewer, 1 kVA / 900 Watt DSP Tower UPS (Uninterruptible Power Supply) And Power Conditioner For Sensitive Electronics With 3 External Battery Packs
  • Load image into Gallery viewer, 1 kVA / 900 Watt DSP Tower UPS (Uninterruptible Power Supply) And Power Conditioner For Sensitive Electronics With 4 External Battery Packs
  • Load image into Gallery viewer, 1 kVA / 900 Watt DSP Tower UPS (Uninterruptible Power Supply) And Power Conditioner For Sensitive Electronics With 5 External Battery Packs
  • Load image into Gallery viewer, Power Synchronization Technology Double Conversion Battery Backup UPS No Transfer Delay To Backup Power
  • Load image into Gallery viewer, Pure True Clean Sine Wave Output Battery Backup UPS
  • Load image into Gallery viewer, DSP (Digital Signal Processing) Battery Backup UPS

1 kVA / 900 Watt Power Conditioner (200/208/220/230/240 VAC), Voltage Regulator, & Battery Backup UPS

Regular price
$ 779.99
Sale price
$ 779.99
Regular price
Sold out
Unit price
per

User Guides:
-Battery Backup Power Tower UPS User Guide.pdf
-Battery Backup Power Tower External Battery Pack User Guide.pdf
-Battery Backup Power SNMP Card Full User Guide.pdf

Spec Sheet/Cut Sheet:
-BBP Tower DSP Series Specification Sheet.pdf


4 Tier Power Protection System – Surge Protection, Real Time Power Conditioning With Voltage Regulation, Pure Sine Wave Output, & Always On Double Conversion Backup Power Technology (Phase Locked To Utility Power Allowing Seamless Transition To Backup Power).


Multiple Backup Time Options:

Model Number: Description (Under Battery Options Drop Down): Approximate Backup Time At Full Load:
BBP-AR-1000-PSW-ONL-230V UPS With Internal Batteries Only (2 Batteries, 12 Volts, 9 Amp Hours Each) 0.22 KWH 11 Minutes
BBP-AR-1000-PSW-ONL-230V-WEBP UPS Plus 1 Extra External Battery Pack (10 Batteries, 12 Volts, 9 Amp Hours Each) 1.08 KWH 58 Minutes
BBP-AR-1000-PSW-ONL-230V-W2EBP UPS Plus 2 Extra External Battery Packs (18 Batteries, 12 Volts, 9 Amp Hours Each) 1.94 KWH 1 Hour 44 Minutes
BBP-AR-1000-PSW-ONL-230V-W3EBP UPS Plus 3 Extra External Battery Packs (26 Batteries, 12 Volts, 9 Amp Hours Each) 2.81 KWH 2 Hours 32 Minutes
BBP-AR-1000-PSW-ONL-230V-W4EBP

UPS Plus 4 Extra External Battery Packs (34 Batteries, 12 Volts, 9 Amp Hours Each) 3.67 KWH

3 Hours 19 Minutes
BBP-AR-1000-PSW-ONL-230V-W5EBP UPS Plus 5 Extra External Battery Packs (42 Batteries, 12 Volts, 9 Amp Hours Each) 4.54 KWH 4 Hours 6 Minutes

  • 1000 VA (1 kVA) / 900 Watt (0.9 kW)
  • 110/150/180~300 Volt AC Input / 200/208/220/230/240 Volt AC Output
  • Energy Efficient/High Efficiency UPS Mode >96.5% Efficiency When Enabled
  • LCD Status Measurements Include Voltage, Frequency, Load Level, Battery Level, Output Current, and Estimated Remaining Backup Time
  • Tower
  • Pure Sine Wave Clean Output To Operate And Maximize The Life Of Even The Most Sensitive Electronics
  • Online (Double Conversion) - Highest Level Of Protection Available - Battery Power Always Engaged, No Switching Delay (Phase Locked To Input Power Source)
  • Wide Frequency Input Range (44-66 Hz Auto Sensing) Allows For Generator Power To Be Used As A Primary Or Secondary Input Power Source (Using Automatic Transfer Switch Before UPS)
  • Constant Voltage Regulation (±1%)
  • Constant Frequency Regulation (±1 or ±3% Selectable)
  • Factory Warranty: 3 Years On Electronics And 1 Year Warranty On Batteries
  • Optional Extended Warranty: 5 Years On Electronics And 1 Year Warranty On Batteries
  • Digital Signal Processing (DSP) Allows For Greater Reliability Over Older UPS Designs And Superior Electric Noise Filtration
  • >0.99 Input Power Factor / 0.92 Output Power Factor (Line Mode) / 0.965 Output Power Factor (High Efficiency Mode) For Superior Efficiency And Power Savings
  • INPUT: IEC 320-C14
  • OUTPUT: (3) IEC 320-C13
    • Weight: 27.1 lbs.
    • Dimensions (Inches): 6.1 X 10.2 X 15.9 (W x H x D)
    • Operating Temperature: 32°-104° F
    • Operating Humidity: 20%~95%, Non-Condensing
    • Operating Elevation: 3,280 Feet Without De-Rating
    • Cold Start Capable (Shipped With Cold Start Disabled, Will Enable Automatically After Receiving Power For The First Time After Shipping)
    • CE, RoHS, & REACH
    • Includes Software For Windows Monitoring & Configuration

    Replacement Batteries:
    -Leoch DJW12-9.0 (Lead Acid), Leoch LP12-9.0 (Lead Acid)Betta Batteries 6-HCNFJ-7.2 (Lead Crystal), Or Battery Backup Power BBP-LIFEPO4-HDR-12V-7.2AH (Lithium Iron Phosphate)
