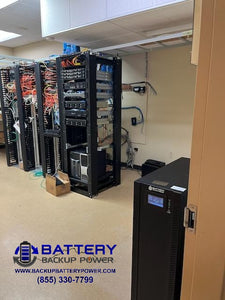

Battery Backup Power 10KVA 15KVA 20KVA 3 Phase UPS Protecting Data Center Server Rack
Battery Backup Power 10KVA 15KVA 20KVA 120/208Y 3 Phase UPS Protecting CNC Machine Heavy Machinery 3D Printer Glove Box
Battery Backup Power 10KVA 15KVA 20KVA 120/208Y 3 Phase UPS Back Of UPS Connections Hardwire

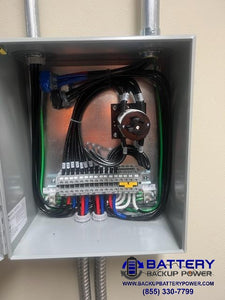

Battery Backup Power 10KVA 15KVA 20KVA 120/208Y 3 Phase UPS Side View Of Hardwire Connection To Electrical Sub Panel
Battery Backup Power 10KVA 15KVA 20KVA 120/208Y 3 Phase UPS Terminal Block Wiring Diagram Hardwire Connections
How To Setup Install Wire A 3 Phase UPS Uninterruptible Power Supply
  • Load image into Gallery viewer, 10 kVA / 10 kW 3 Phase Battery Backup Uninterruptible Power Supply (UPS) And Power Conditioner
  • Load image into Gallery viewer, 10 kVA / 10 kW Advanced Digital 3 Phase Battery Backup Uninterruptible Power Supply (UPS) And Power Conditioner Dimensions
  • Load image into Gallery viewer, BBP-AR-33-10K Front And Back
  • Load image into Gallery viewer, 10 kVA / 10 kW 3 Phase Power Conditioner, Voltage Regulator, & Battery Backup UPS
  • Load image into Gallery viewer, 10 kVA / 10 kW Advanced Digital 3 Phase Battery Backup Uninterruptible Power Supply (UPS) And Power Conditioner With 1 External Battery Pack
  • Load image into Gallery viewer, 10 kVA / 10 kW Advanced Digital 3 Phase Battery Backup Uninterruptible Power Supply (UPS) And Power Conditioner With 2 External Battery Packs
  • Load image into Gallery viewer, 10 kVA / 10 kW Advanced Digital 3 Phase Battery Backup Uninterruptible Power Supply (UPS) And Power Conditioner With 3 External Battery Packs
  • Load image into Gallery viewer, 10 kVA / 10 kW Advanced Digital 3 Phase Battery Backup Uninterruptible Power Supply (UPS) And Power Conditioner With 4 External Battery Packs
  • Load image into Gallery viewer, 10 kVA / 10 kW Advanced Digital 3 Phase Battery Backup Uninterruptible Power Supply (UPS) And Power Conditioner With 5 External Battery Packs
  • Load image into Gallery viewer, BBP-AR-33 Wiring Diagram To 3 Phase Distribution Panel
  • Load image into Gallery viewer, Battery Backup Power 10KVA 15KVA 20KVA 3 Phase UPS Protecting Data Center Server Rack
  • Load image into Gallery viewer, Battery Backup Power 10KVA 15KVA 20KVA 120/208Y 3 Phase UPS Protecting CNC Machine Heavy Machinery 3D Printer Glove Box
  • Load image into Gallery viewer, Battery Backup Power 10KVA 15KVA 20KVA 120/208Y 3 Phase UPS Back Of UPS Connections Hardwire
  • Load image into Gallery viewer, Battery Backup Power 10KVA 15KVA 20KVA 120/208Y 3 Phase UPS Side View Of Hardwire Connection To Electrical Sub Panel
  • Load image into Gallery viewer, Battery Backup Power 10KVA 15KVA 20KVA 120/208Y 3 Phase UPS Terminal Block Wiring Diagram Hardwire Connections
  • Load image into Gallery viewer, How To Setup Install Wire A 3 Phase UPS Uninterruptible Power Supply

10 kVA / 10 kW 3 Phase Power Conditioner, Voltage Regulator, & Battery Backup UPS

Regular price
$ 12,999.99
Sale price
$ 12,999.99
Regular price
Sold out
Unit price
per

4 Tier Power Protection System – Surge Protection, Real Time Power Conditioning With Voltage Regulation, Pure Sine Wave Output, & Always On Double Conversion Backup Power Technology (Phase Locked To Utility Power Allowing Seamless Transition To Backup Power).

Do you need a PDF quote or a custom emergency backup solution? Email us at engineering@batterybackuppower.com

Multiple Backup Time Options:
Model Number: Description (Under Battery Options Drop Down): Approximate Backup Time At Full Load:
BBP-AR-33-10K UPS With Internal Batteries Only (20 Batteries, 12 Volts, 9 Amp Hours Each) 2.16 KWH 6 Minutes
BBP-AR-33-10K-WEBP UPS Plus 1 Extra External Battery Pack (100 Batteries, 12 Volts, 9 Amp Hours Each) 10.80 KWH 32 Minutes
BBP-AR-33-10K-W2EBP UPS Plus 2 Extra External Battery Packs (180 Batteries, 12 Volts, 9 Amp Hours Each) 19.44 KWH 57 Minutes
BBP-AR-33-10K-W3EBP UPS Plus 3 Extra External Battery Packs (260 Batteries, 12 Volts, 9 Amp Hours Each) 28.08 KWH 1 Hour 22 Minutes
BBP-AR-33-10K-W4EBP UPS Plus 4 Extra External Battery Packs (340 Batteries, 12 Volts, 9 Amp Hours Each) 36.72 KWH 1 Hour 48 Minutes
BBP-AR-33-10K-W5EBP UPS Plus 5 Extra External Battery Packs (420 Batteries, 12 Volts, 9 Amp Hours Each) 45.36 KWH 2 Hours 13 Minutes

  • Model: BBP-AR-33-10K
  • 10000 VA (10 kVA) / 10000 Watt (10 kW)
  • 3 Phase
  • Tower
  • Pure Sine Wave Clean Output To Operate And Maximize The Life Of Even The Most Sensitive Electronics
  • Online (Double Conversion) - Highest Level Of Protection Available - Battery Power Always Engaged, No Switching Delay
  • Accepts Generator Power (Direct or On Automatic Transfer Switch)
  • Constant Voltage Regulation
  • Constant Frequency Regulation
  • Factory Warranty: 3 Years On Electronics And 1 Year Warranty On Batteries
  • Optional Extended Warranty: 6 Years On Electronics And 3 Year Warranty On Batteries
  • Heavy Duty Industrial Grade For Constant Use
  • For Use With Laboratory Instruments
  • For Use With Medical Devices
  • For Use With Hospital Equipment
  • For Use With Sensitive IT Equipment
  • 1.0 Power Factor (Unity Power Factor)
  • UL Listed
  • Management And Monitoring Software Included
  • Battery Configuration:
    • Built In 20x 12 Volt 9 Amp Hour Batteries
      • 6 Minutes (Full Load)
      • 12 Minutes (Half Load)
    • Add 1 Or More External Battery Cabinets To Extend Backup Time
    • Input:
      • 138~270 VAC 3 Phase @ 50% Load
      • 173~253 VAC 3 Phase @ 100% Load
    • Output:
      • 208/220 VAC 3 Phase
    • Full Load Estimated Run Time On Battery Power:
      • 6 Minutes With Internal Batteries
      • Contact Us For Additional Battery Cabinet Configurations
    • Operating Temperature Rating: 0C ~ +40C
    • Humidity: <95% And Non-Condensing
    • Dimensions D X W X H (mm): 628 X 250 X 827
    • Net Weight: 95 Kgs. (210 lbs.)



    How To Install Setup Wire A 3 Phase UPS

    Customer Reviews

    Based on 2 reviews
    100%
    (2)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    T
    T.M.
    Seamless Backup Power For Critical Loads (Works Great As Bridge Power For Generators)

    I use these for commercial customers that install generators. Feed this UPS with a 30 amp 3 pole breaker from the main panel and then have the output feed a smaller 120/208Y 3 phase critical load sub panel (27 amps max). Everything on that critical load sub panel will stay online during power outages, brown outs, and when the generator starts up (triggered by your ATS). Typically the critical loads would circuits that feed server racks, computers, phones, etc. No motor loads unless you confirm the LRA or inrush is below 27 amps 120/208Y.

    T
    T.W.
    Easy to install 120/208Y 3 phase UPS

    This was the easiest to install 3 phase UPS I've ever worked with. It is 5 wires in, 5 wires out, flip on 3 breakers, push the power button, and you are done. You need to wire the 3 hot wires in the correct phase rotation. If you do it wrong, the LCD will tell you so you just power down, switch 2 wires, and you are good. It also has bypass input already wired and ready to go with the included jumper wires.
