UPS User Guide:
BBP-ADV-33 10K-40K 3 Phase UPS User And Installation Guide
Optional Network Card User Guide:
SNMP/Network Card User Guide For BBP-ADV-33 10KVA-40KVA 3 Phase UPS
Optional External Battery Cabinet User/Installation Guide:
BBP-ADV-33 10KVA, 15KVA, & 20KVA Optional External Battery Cabinet User And Installation Guide
Spec Sheet/Cut Sheet:
BBP-ADV-33 10K-40K 3 Phase UPS Model Specifications
4 Tier Power Protection System – Surge Protection, Real Time Power Conditioning With Voltage Regulation, Pure Sine Wave Output, & Always On Double Conversion Backup Power Technology (Phase Locked To Utility Power Allowing Seamless Transition To Backup Power).
Do you need a PDF quote or a custom emergency backup solution? Email us at engineering@batterybackuppower.com.
Multiple Backup Time Options:

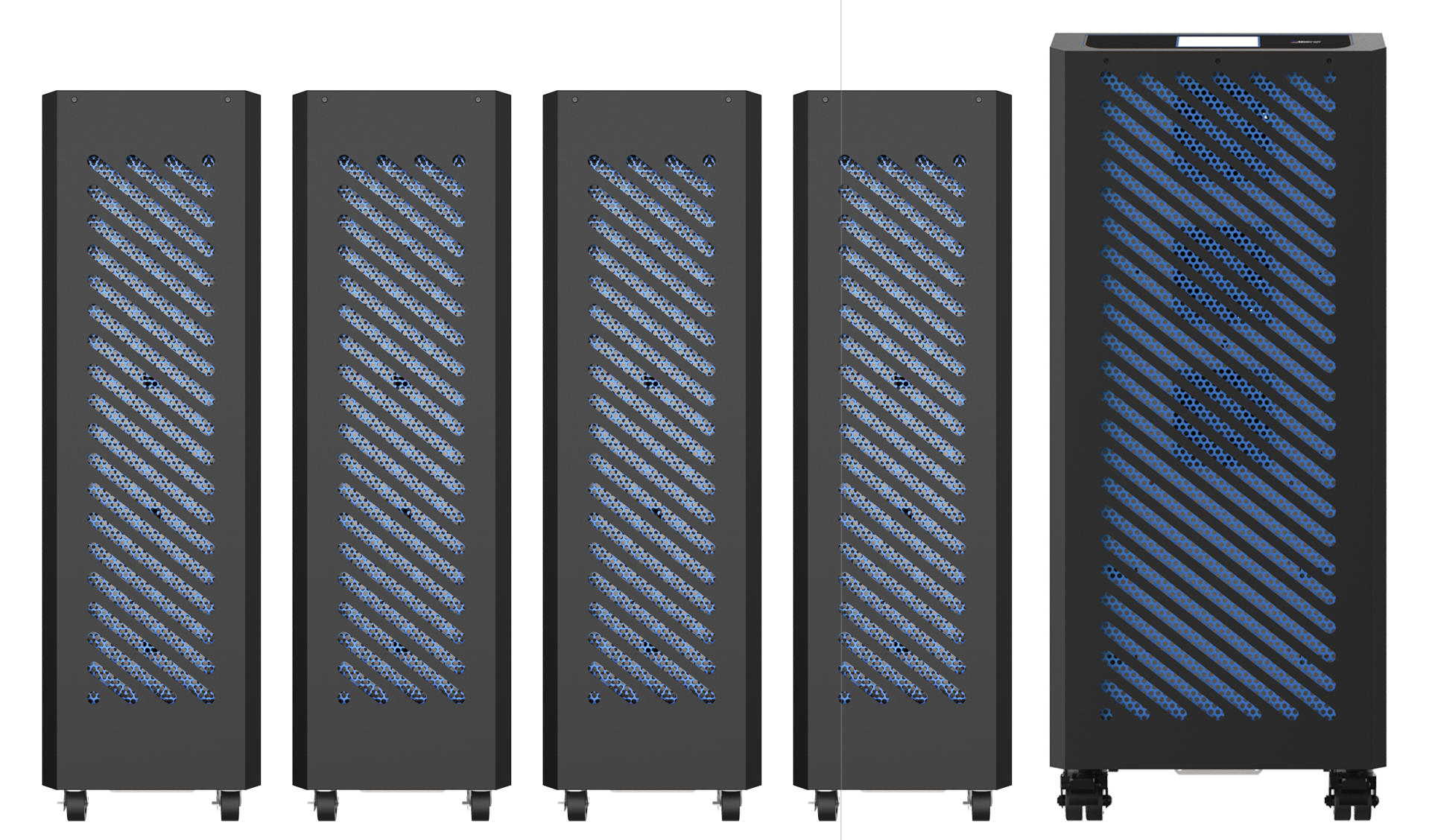

| Model Number: | Description (Under Battery Options Drop Down): | Approximate Backup Time At Full Load: |
| BBP-ADV-33-15K | UPS With Internal Batteries Only (40 Batteries, 12 Volts, 9 Amp Hours Each) 4.32 KWH | 8 Minutes |

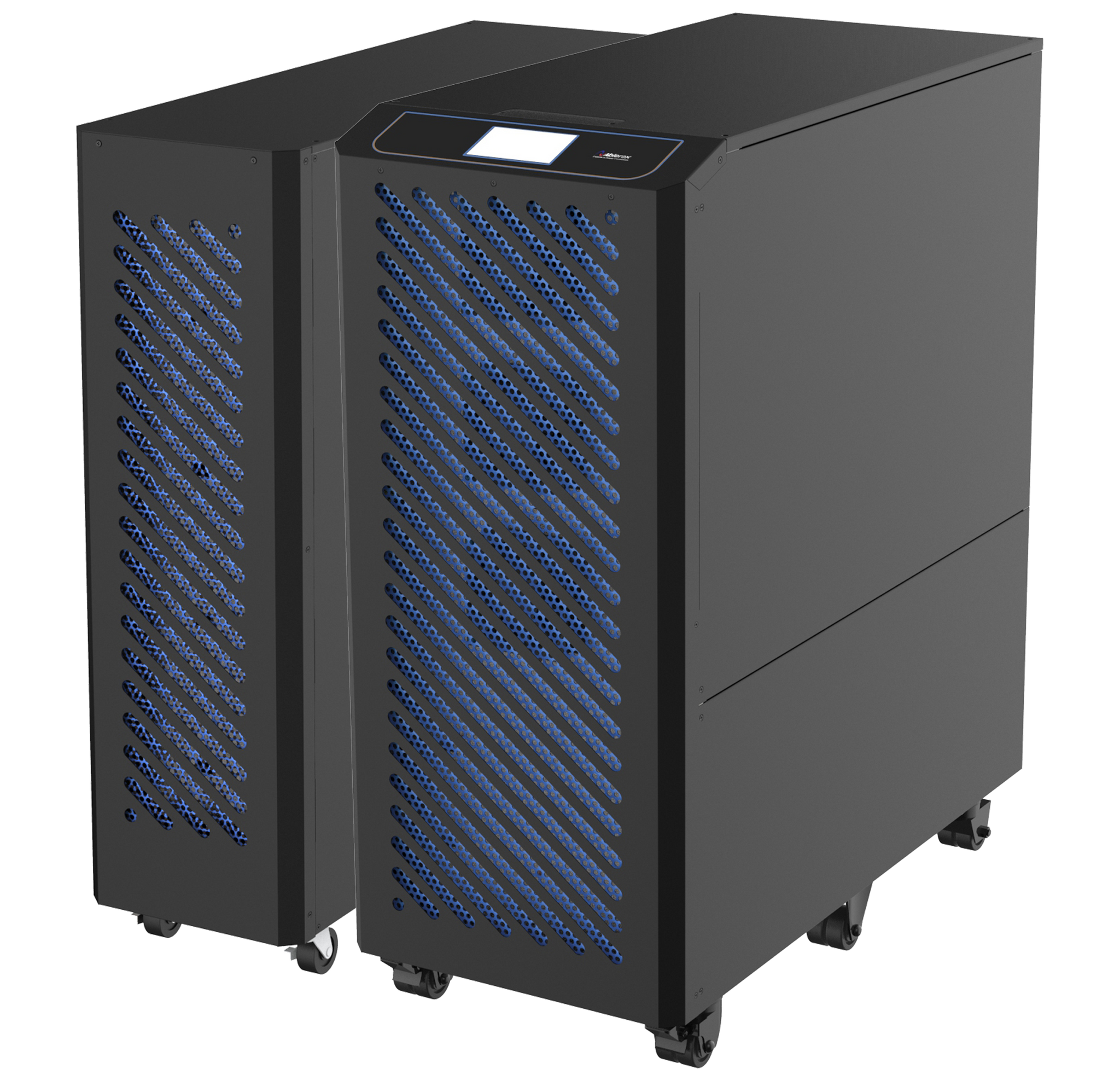

| BBP-ADV-33-15K-WEBP | UPS Plus 1 Extra External Battery Pack (120 Batteries, 12 Volts, 9 Amp Hours Each) 12.96 KWH | 25 Minutes |
| BBP-ADV-33-15K-W2EBP | UPS Plus 2 Extra External Battery Packs (200 Batteries, 12 Volts, 9 Amp Hours Each) 21.60 KWH | 42 Minutes |

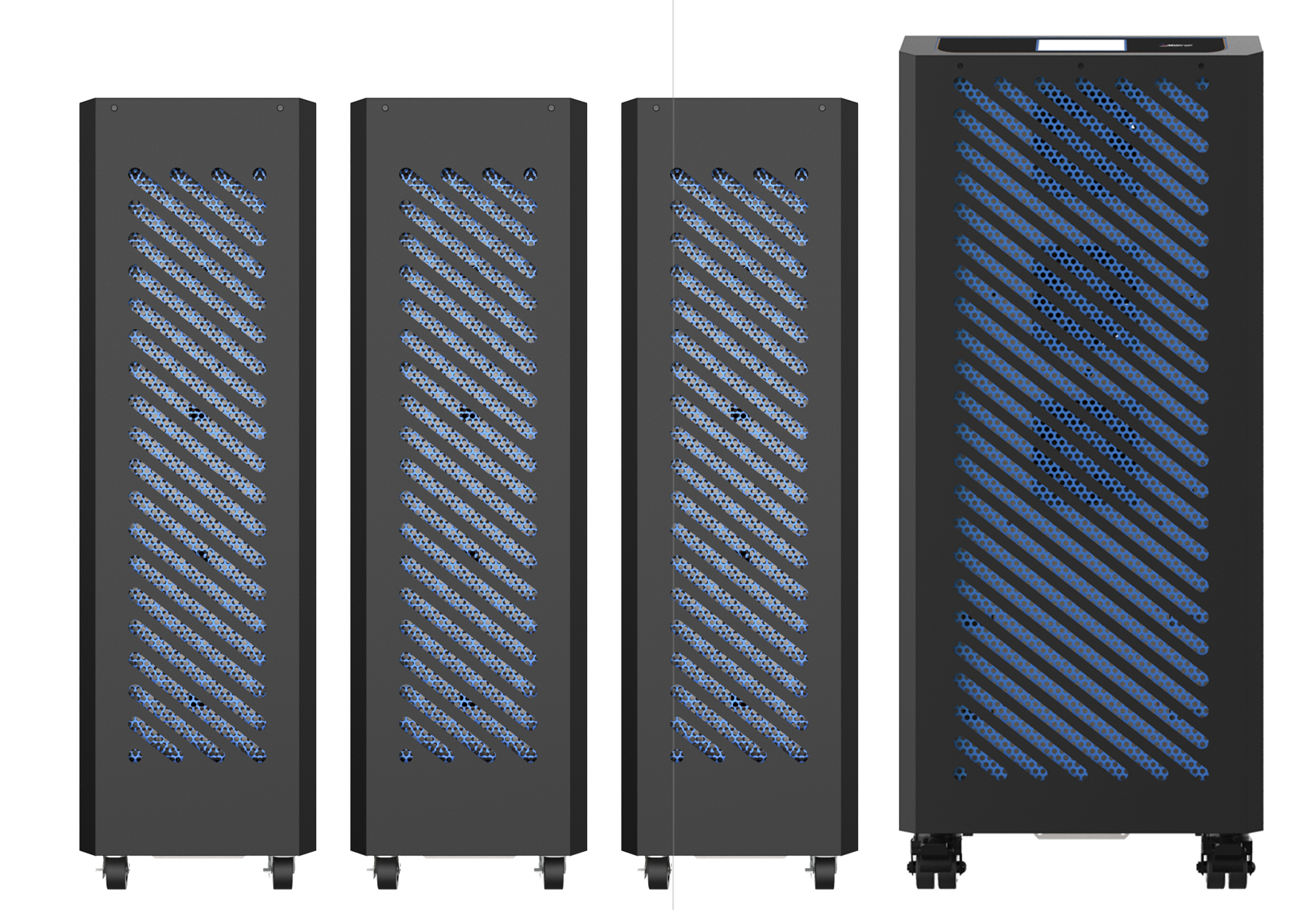

| BBP-ADV-33-15K-W3EBP | UPS Plus 3 Extra External Battery Packs (280 Batteries, 12 Volts, 9 Amp Hours Each) 30.24 KWH | 59 Minutes |
| BBP-ADV-33-15K-W4EBP | UPS Plus 4 Extra External Battery Packs (360 Batteries, 12 Volts, 9 Amp Hours Each) 38.88 KWH | 1 Hour 16 Minutes |

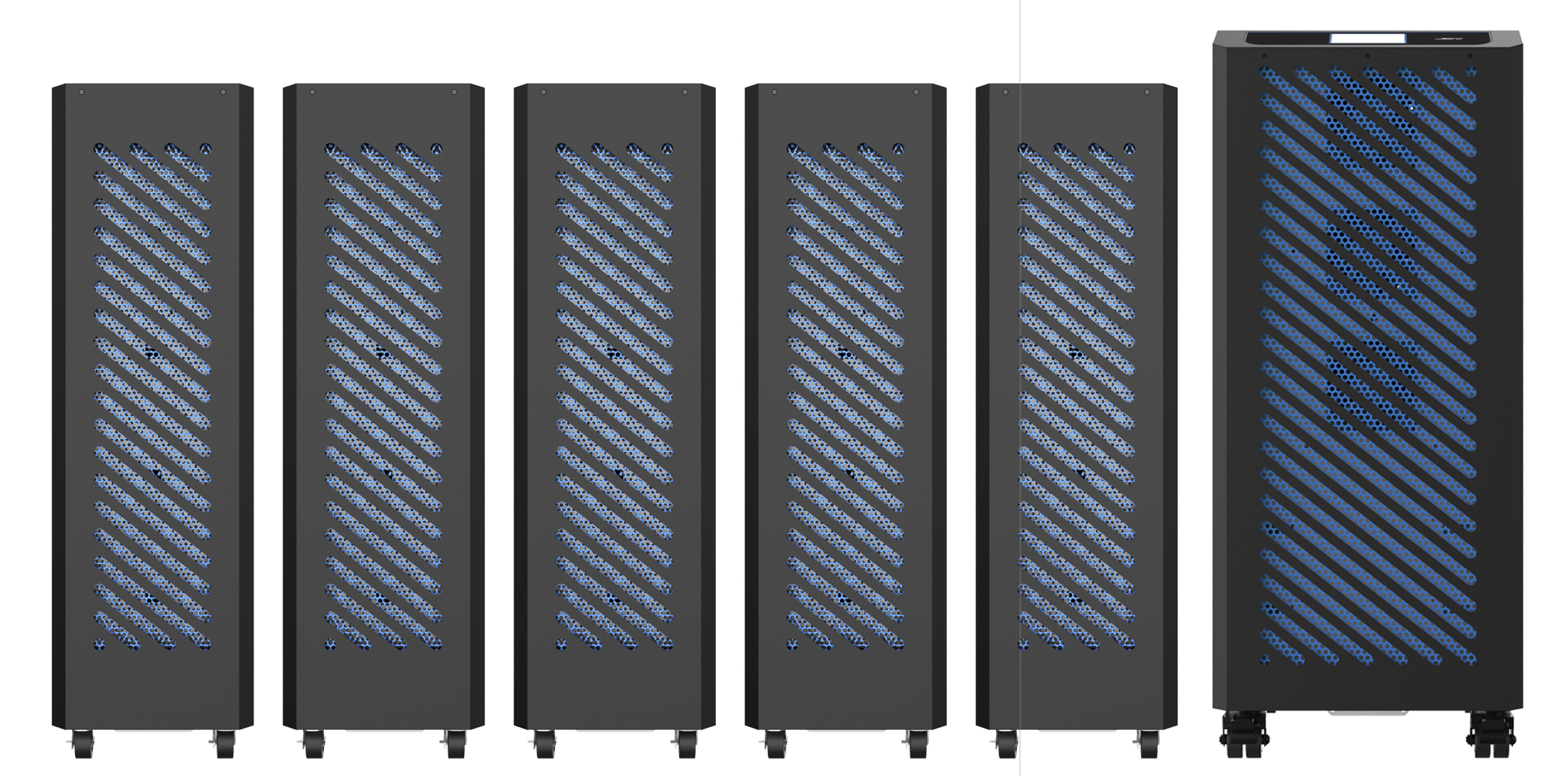

| BBP-ADV-33-15K-W5EBP | UPS Plus 5 Extra External Battery Packs (440 Batteries, 12 Volts, 9 Amp Hours Each) 47.52 KWH | 1 Hours 33 Minutes |

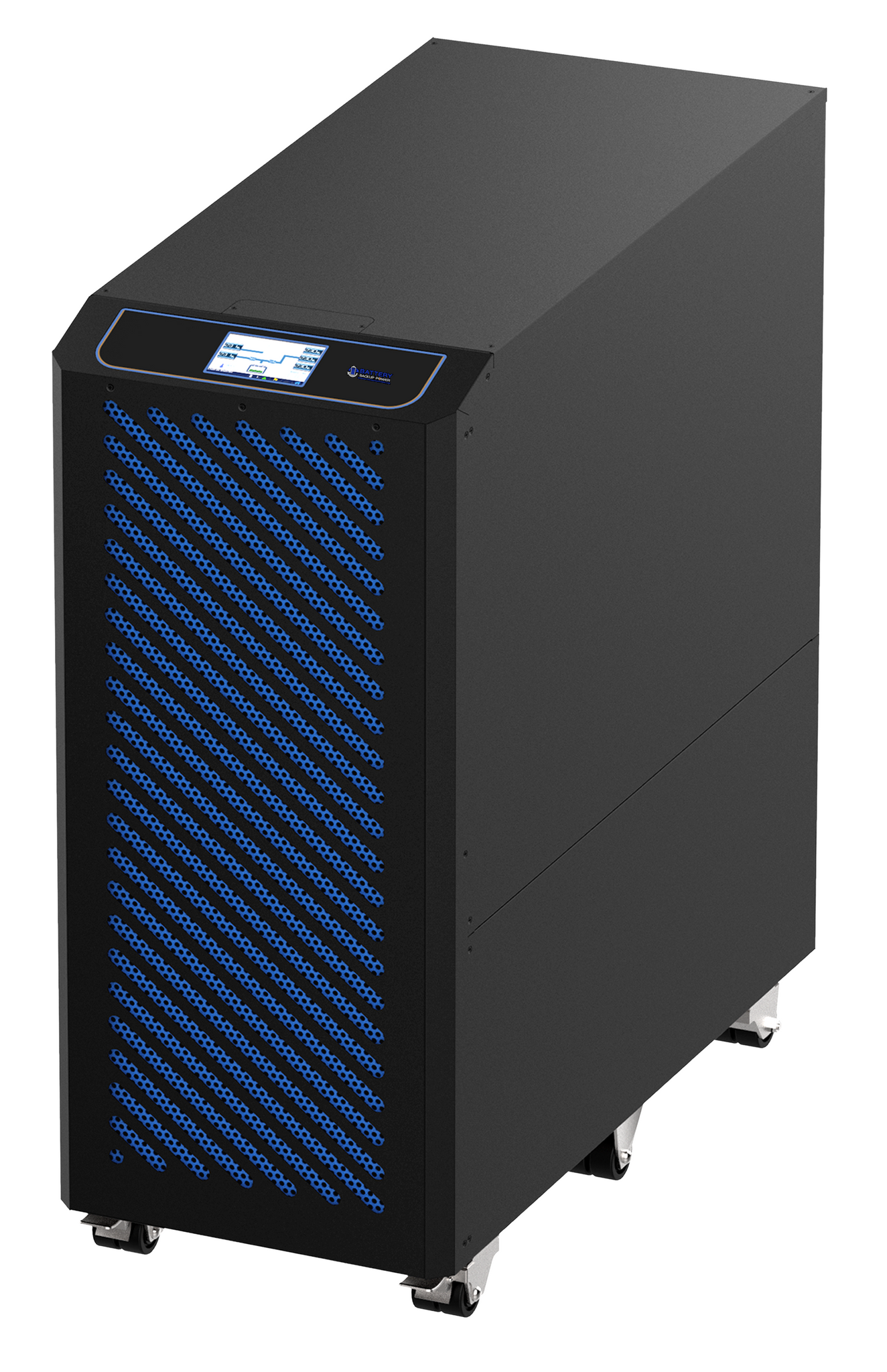

- Model: BBP-ADV-33-15K
- 15000 VA (15 kVA) / 15000 Watt (15 kW)
- 3 Phase
- Tower
- Pure Sine Wave Clean Output To Operate And Maximize The Life Of Even The Most Sensitive Electronics
- Online (Double Conversion) - Highest Level Of Protection Available - Battery Power Always Engaged, No Switching Delay
- Accepts Generator Power (Direct or On Automatic Transfer Switch)
- Constant Voltage Regulation
- Constant Frequency Regulation
- Factory Warranty: 3 Years On Electronics And 1 Year Warranty On Batteries
- Optional Extended Warranty: 6 Years On Electronics And 3 Year Warranty On Batteries
- Heavy Duty Industrial Grade For Constant Use
- For Use With Laboratory Instruments
- For Use With Medical Devices
- For Use With Hospital Equipment
- For Use With Sensitive IT Equipment
- 1.0 Power Factor (Unity Power Factor)
- UL Listed
- Management And Monitoring Software Included
- Battery Configuration:
- Built In 40x 12 Volt 9 Amp Hour Batteries
- 8 Minutes (Full Load)
- 16 Minutes (Half Load)

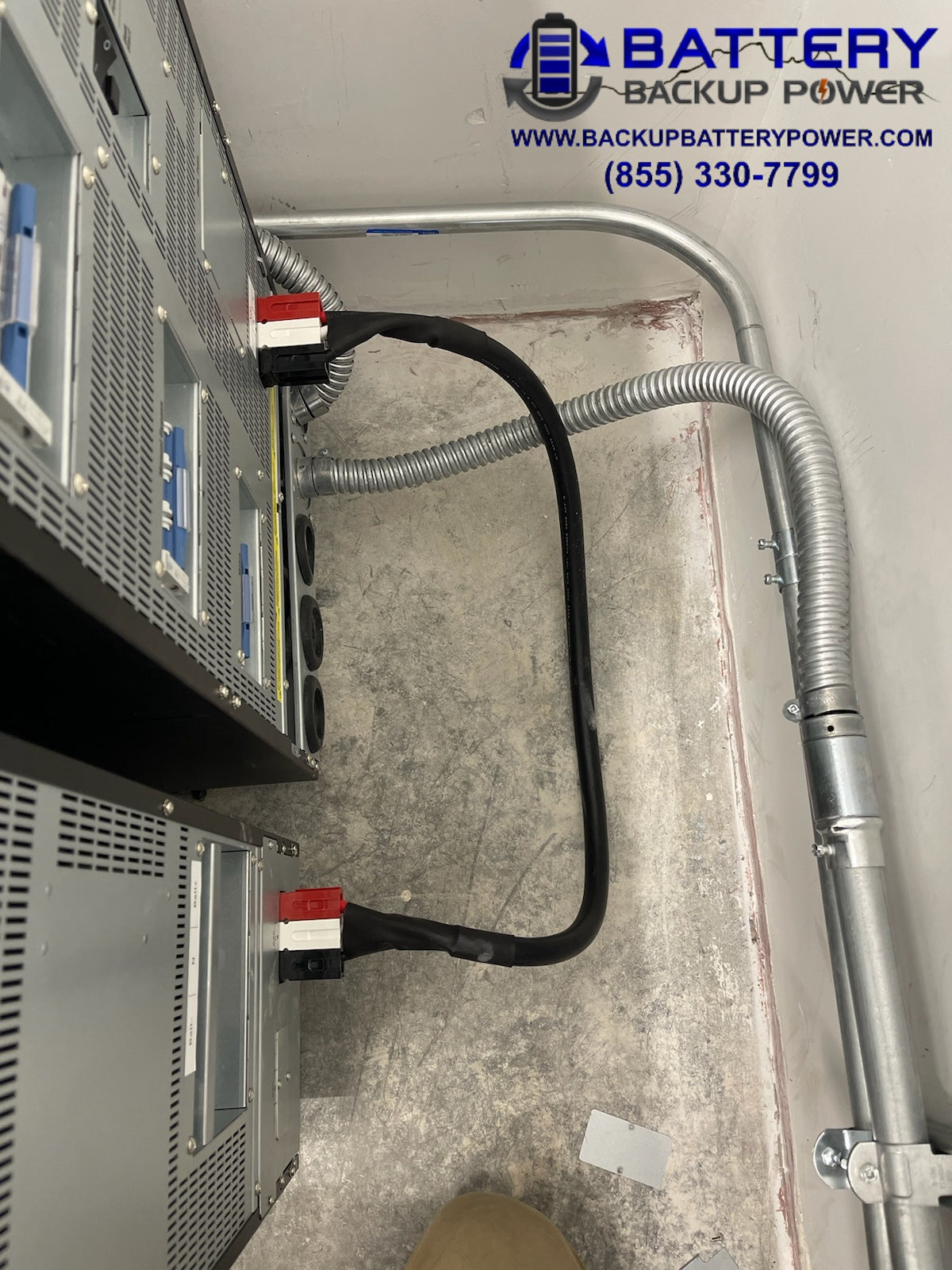

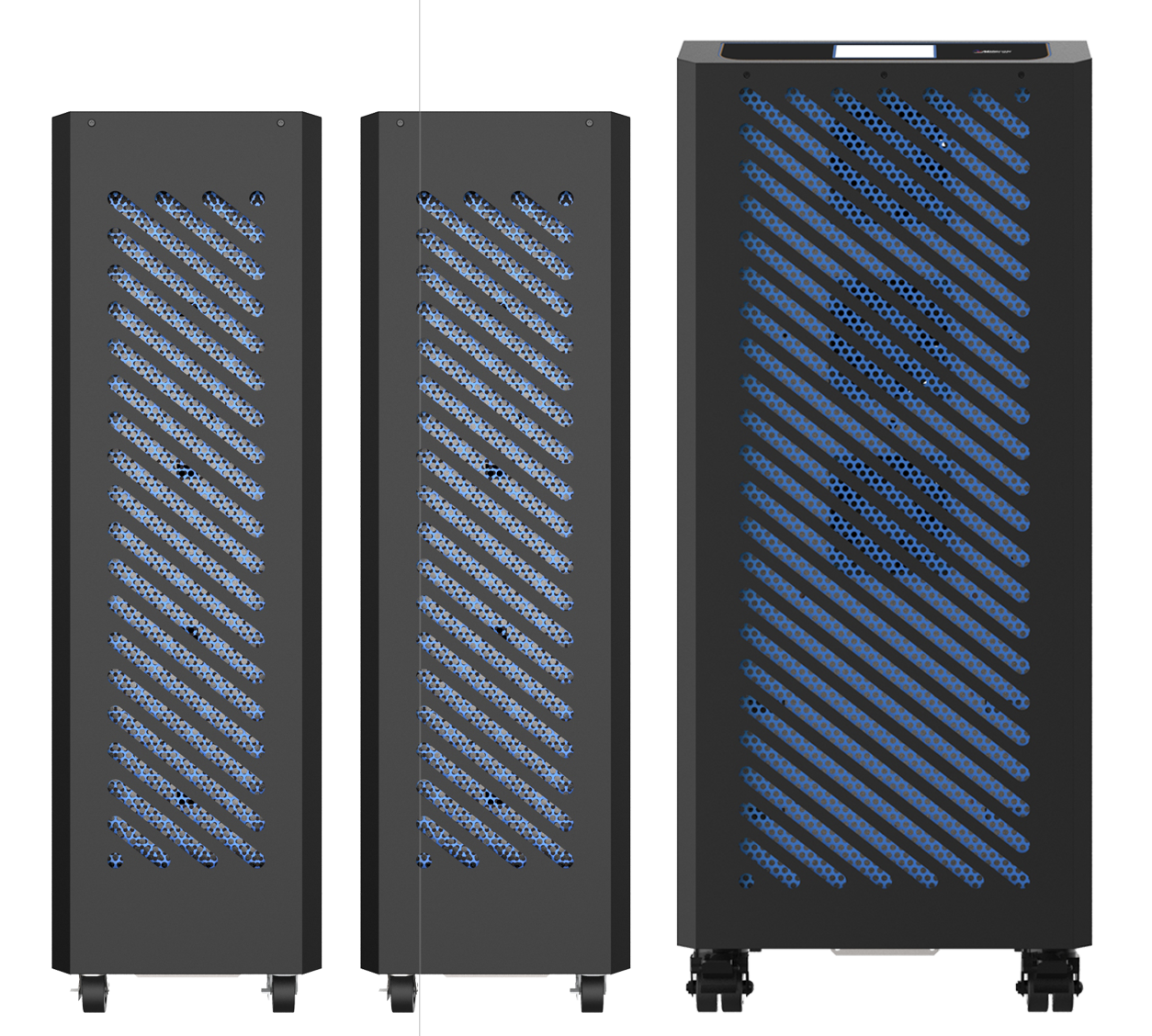

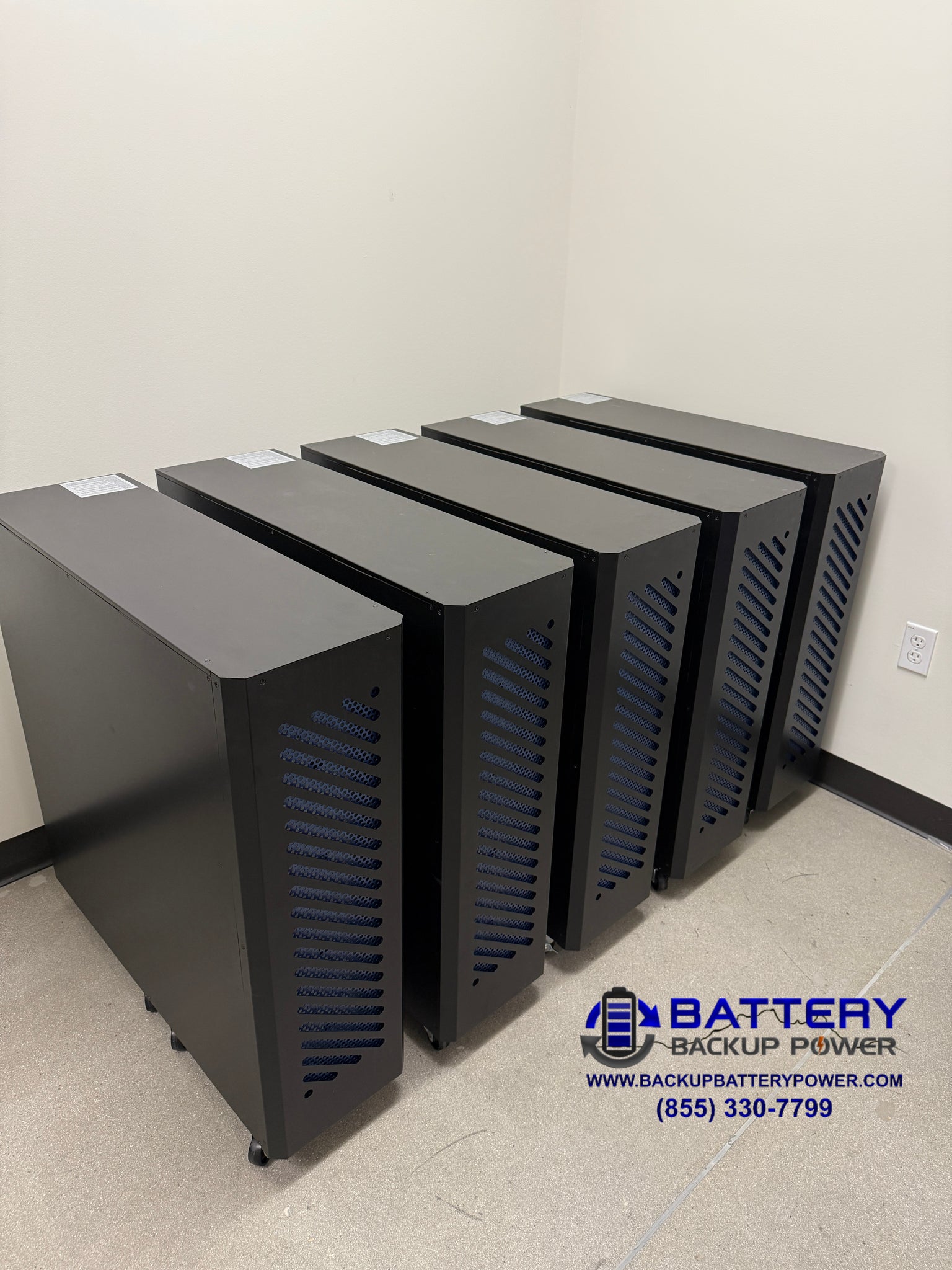

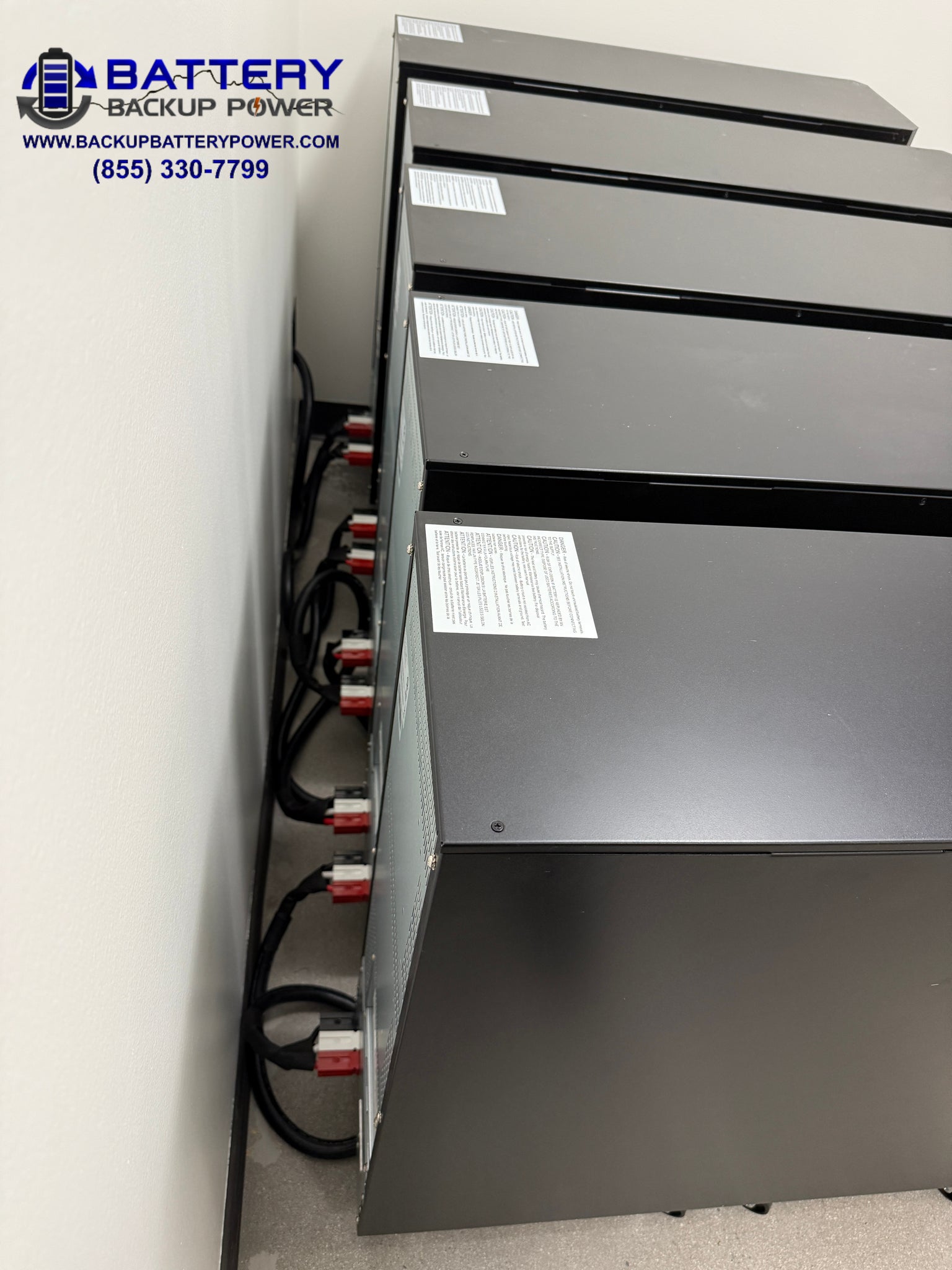

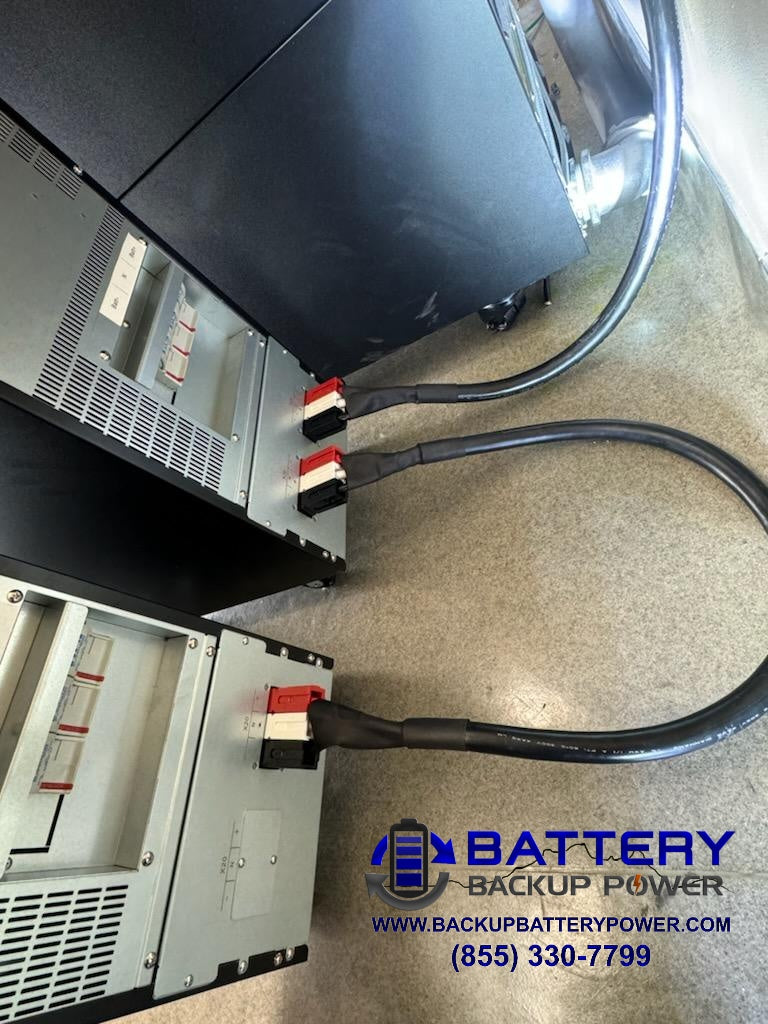

- Add 1 Or More External Battery Cabinets To Extend Backup Time
- Contact Us For More Information
- Input:
- 138~270 VAC 3 Phase @ 50% Load
- 173~253 VAC 3 Phase @ 100% Load
- Output:
- 208/220 VAC 3 Phase
- Full Load Estimated Run Time On Battery Power:
- 8 Minutes With Internal Batteries
- Contact Us For Additional Battery Cabinet Configurations
- Operating Temperature Rating: 0C ~ +40C
- Humidity: <95% And Non-Condensing
- Dimensions D X W X H: 850mm X 410mm X 977mm (33.5 inches X 16.15 inches X 38.5 inches)
- Net Weight: 209 Kgs. (460 lbs.)
