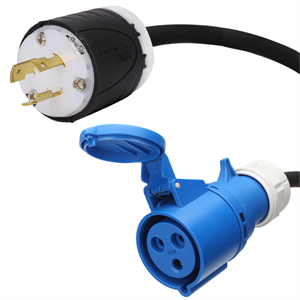

Convert a pin and sleeve 316P6 pin and sleeve plug to a NEMA L6-20P plug.
Specifications:
| Male Plug |
NEMA L6-20P |
| Female Connector | 316C6 (IEC 309) |
| Amperage | 20 Amps |
| Voltage | 250V |
| Length | 1 Foot |
| Conductors | 3 wire |
| Wire Gauge | 12/3 |
| Jacket | International H05VV-F3G4 |
Technical Notes: Ground is in the 3 O'Clock Position
Applications: For use in areas of high moisture, generators, data centers, watertight marine applications. Used with Thermo Fisher Scientific lab instruments.
AKA: 316C6C Pin and Sleeve Adapter, IEC watertight plug, L6-20P to 316C6
Part Number: BBP-L620P-IEC316C6
